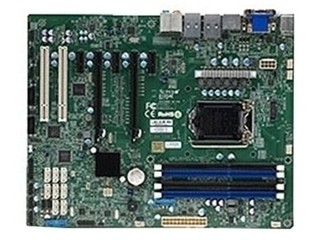

x10sae

ATX

12" x 9.6" (30.48cm x 24.38cm)

Intel? Xeon? processor E3-1200 v3, Intel? Xeon? Processor E3-1200 v4 series

Single Socket LGA-1150 (Socket H3) supported, CPU TDP supports Up to 95W TDP

A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3

Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots

1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

1GB, 2GB, 4GB, 8GB

1.35V, 1.5V

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

Intel? C226 Express PCH

SATA3 via PCH w/ RAID 0, 1, 5, 10

SATA3 via ASM1061?

Single LAN with Intel? Ethernet Controller I210-AT
Single LAN with Intel? Ethernet Controller I217LM

RealTek ALC1150 HD Audio

for E3-1275 v3* only

2 RJ45 Gigabit Ethernet LAN ports

10 USB 2.0 ports (4 rear + 6 via headers)

6 USB 3.2 Gen1 ports (2 rear + 4 via headers)

1 VGA port, 1 DVI - I port, 1 DP (DisplayPort) port, 1 HDMI port,

for E3-1275 v3* only

2 COM Ports (2 headers)

TPM Header

2x Type B 1394a headers, PS/2 connector for mouse and keyboard
