						超微X10DRH-I 服務器主板C612/E5-2600V3/V4						返回






							基本參數 :















              產品詳情

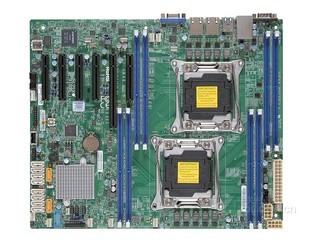

              超微X10DRH-I 服務器主板 E-ATX/C612/E5-2600V3/V4

              Product SKUs

              MBD-X10DRH-I
              • X10DRH-I
              Expansion Slots

              PCI-E
              • 1 PCI-E 3.0 x16,
              • 6 PCI-E 3.0 x8

              System BIOS

              BIOS Type
              • 128Mb SPI Flash EEPROM with AMI BIOS
              BIOS Features
              • Plug and Play (PnP)
              • PCI 2.3
              • ACPI 1.0 / 2.0 / 3.0 / 4.0
              • USB Keyboard support
              • SMBIOS 2.7.1
              • UEFI 2.3.1

              Management

              Software
              • Intel? Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor? 5, Watchdog
              Power Configurations
              • ACPI Power Management
              • Power-on mode for AC power recovery

              PC Health Monitoring

              Voltage
              • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT
              FAN
              • 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
              Temperature
              • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
              LED
              • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
              Other Features
              • Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC

              Operating Environment

              Operating Temperature Range
              • 10°C - 35°C (50°F - 95°F)
              Non-Operating Temperature Range
              • -40°C - 70°C (-40°F - 158°F)
              Operating Relative Humidity Range
              • 8% - 90% (non-condensing)
              Non-Operating Relative Humidity Range
              • 5% - 95% (non-condensing)

              Physical Stats

              Form Factor
              • E-ATX
              Dimensions
              • 12" x 13" (30.48cm x 33.02cm)

              Processor/Cache

              CPU
              • Intel? Xeon? processor E5-2600 v3, Intel? Xeon? processor E5-2600 v4.
              • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
              Cores / Cache
              • Up to 22 cores ? / Up to 55MB? cache
              Note
              • ? BIOS version 2.0 or above is required
              Note
              • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

              System Memory

              Memory Capacity
              • 1TB Registered ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
              Memory Type
              • 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
              DIMM Sizes
              • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
              • LRDIMM: 32GB, 64GB
              • 3DS LRDIMM: 128GB
              Memory Voltage
              • 1.2V
              Error Detection
              • Corrects single-bit errors
              <td width="222" class="description border_b" background="https://www.supermicro.org.cn/en/products/motherboard/X10DRH-I?locale=en" style="box-sizing: border-box; font-family: Arial, Helvetica, "sans serif"; padding-top: 3px; padding-bottom: 3px; padding-left: 25px; border-top: none; border-right: none; border-bottom-color: rgb(0, 153, 255); border-left: none; line-height: 1.2; vertical-align: top; color: rgb(0, 51, 102) !impo

少妇又色又紧又爽又刺激视频
欧美嫩交一区二区三区
欧美亚洲综合成人A∨在线
亚洲男女羞羞无遮挡久久丫

欧美综合人人做人人爱
亚洲制服丝袜中文字幕在线
久久久无码精品亚洲日韩按摩
国产成人8X人网站视频
亚洲欧美中文字幕5发布
日韩精品无码一区二区三区AV

亚洲高清无在码在线电影不卡
18禁超污无遮挡无码网址极速
精品少妇人妻AV无码久久
亚洲精品国自产拍在线观看
成 人 在 线 免费观看
亚洲AV永久无码精品一区二区国产
亚洲AV永久无码一区
亚洲 日本 欧洲 欧美 视频
亚洲AV无码不卡私人影院
亚洲国产一区二区A毛片




BT天堂新版中文在线



主站蜘蛛池模板：
午夜无码乱码在线观看|
久久久久久久久久久身材好|
性色做爰片在线观看ww
|
爱情岛亚洲论坛入口福利|
国产色a∨在线看免费|
97久久精品视频|
亚洲国产日韩在线|
国产午夜精品免费一区二区三区视频
|
一区二区三区乱码在线 | 中文|
很黄的性视频|
免费日韩三级|
女同性av片在线观看免费网站|
国产综合久久久久鬼色|
毛片网站观看|
黄色片一级网站|
亚洲高清WWW色好看美女|
色狠狠成人综合网|
国产乱码精品一区二区三|
亚洲性少妇|
狠狠色丁香婷综合久久|
久久影视久久午夜|
51国产偷自视频区视频小蝌蚪|
日韩大毛片|
一级黄色片子免费看|
美女内射毛片在线看|
人妻内射一区二区在线视频|
精品视频|
中文日本在线|
中曰韩黄色片|
国产国产精品人在线观看|
国产精品 亚洲一区|
亚洲国产视频一区|
美女黄色片视频|
精产国品一二三产区9977|
久久久av男人的天堂|
免费观看黄色毛片|
国产视频xxxx|
成 人 在 线 免费观看|
亚洲中文字幕va福利|
成人一区二区三区免费视频|
无敌风火轮在线播放免费观看|


                        4. On-Board Devices

                          Chipset
                          • Intel? C612
                          SATA
                          • Intel? C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
                          AHCI SATA
                          • SATA3 (6Gbps); RAID 0, 1, 5, 10
                          SCU SATA
                          • SATA3 (6Gbps); RAID 0, 1, 5, 10
                          IPMI
                          • Support for Intelligent Platform Management Interface v.2.0
                          • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
                          • ASPEED AST2400 BMC
                          Network Controllers
                          • Dual LAN with Intel? i350 Gigabit Ethernet Controller
                            Single LAN with Virtual Machine Device Queues reduce I/O overhead
                            Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
                            Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
